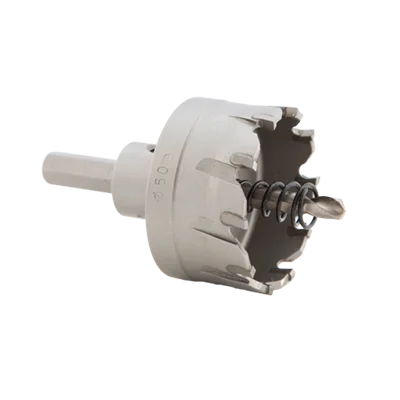

Saddle Clamp Drill Bit

Item #TP-DRILL BIT

Add To Quote
SKU: #TP-DRILL BIT Category:

Description

Size TruLink Part Number Extras
19mm(25mm-32mm Tubing) TP-Drill Bit 25- 32 Drill Jig Required
22mm (40mm – 63mm Tubing) TP-Drill Bit 40- 63 Drill Jig Required
50mm(73mm Tubing)(Fits all 73mm Saddles) TC-Drill Bit 73
55mm(90mm Tubing)(Fits all 90mm Saddles) TC-Drill Bit 90
 66mm(115mm Tubing)(Fits all 115mm Saddles) TC-Drill Bit 115
68mm(168-220mm Tubing)(Fits all 168mm and 220mm Saddles) TC-Drill Bit 168-220



THE NEXT GENERATION OF ALUMINUM PIPING SYSTEMS

Completely designed, engineered, and manufactured by AST, TruLink combines the proven reliability, safety, and installation ease of the past with cutting edge material, engineering, and manufacturing technology.

TruLink is manufactured from high quality, marine-grade aluminum to provide the highest level of protection against corrosion. Our smooth bore, extruded tubing is manufactured in the USA and ensures that the media traveling through a system encounters very little turbulence, while enabling high flow rates with minimal pressure losses compared to conventional steel systems.

By utilizing aluminum, we guarantee a 30-55% weight reduction over traditional systems -making TruLink easy to install and modify. Also, aluminum is the best material choice for corrosion and rust resistance, so the system will remain operating at maximum efficiency for the duration of use.

WHAT SETS TRULINK APART FROM TRADITIONAL PIPING SYSTEMS?

  • All Aluminum System
  • Compatible with Common Groove Technology
  • 2x Deeper Tubing Engagements
  • Seven industry leading patented technologies
  • Leak Free Guarantee @ 230 psi, 300°F
  • Zero Rust & Corrosion
  • Food Grade Compliant
  • 30-55% Lighter Weight than Traditional Systems
  • Long Radius Elbows, Threaded Elbows
  • Fitting Size Clearly Identified on Casting
  • Automated Assembly in the USA
  • Installation ready upon delivery
  • Lifetime warranty covering all piping and fittings

Additional information

PTC Fitting Size

19mm(25mm-32mm Tubing), 22mm (40mm-63mm Tubing), 50mm (73mm Tubing) (Fits all 73 mm saddles), 55mm (90mm Tubing) (Fits all 90mm Saddles), 66mm (115 Tubing) (Fits all 115mm Saddles), 68mm (168-220mm Tubing) (Fits all 168mm and 220mm Saddles)
